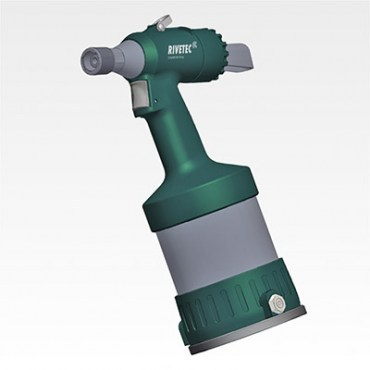

For setting of two part rivets and structured blind rivets.

Scope of use:

• A two-part high strength SRB (Lockbolt): Ø 5.0–6.4 mm
• Blind rivets, high strength and structured: Ø 5.0–6.4 mm
• Weight: 2.2 kg · Air pressure max. 7 bar
• Pulling force 22 kN at 6 bar · Stroke 16 mm
• Dimensions: 235 × 319 mm

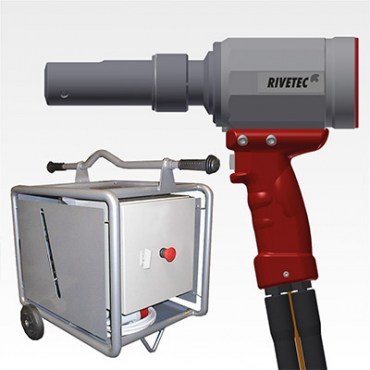

HYD-SET complete for lockbolts consists of the hydraulic tool LBH 12
and electro-hydraulic unit HV 703.

Scope of use:

• Lockbolts 12.7 mm
• Pressure max. 60 MPa
• Pulling force: 155 kN / 45 MPa
• Stroke: 46 mm

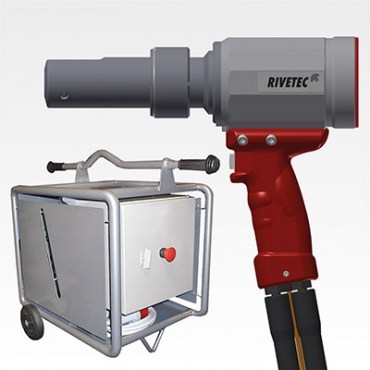

HYD-SET complete consists of the hydraulic tool LBH 16 for lockbolts
and electro-hydraulic unit HV 703.

Scope of use:

• Lockbolts 16 mm
• Pressure max. 60 MPa
• Pulling force: 155 kN / 45 MPa
• Stroke: 46 mm

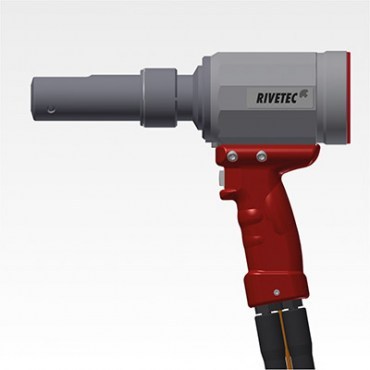

Hydraulic installation tool for lockbolts.

Scope of use:

• Lockbolts 12.7 mm
• Weight: 8.5 kg
• Pressure max. 60 MPa
• Pulling force: 155 kN / 45 MPa
• Stroke: 46 mm
• Dimensions: 307 × 244 mm

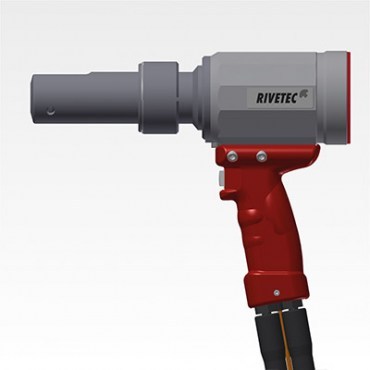

Hydraulic installation tool for lockbolts.

Scope of use:

• Lockbolts 16 mm
• Weight: 9.6 kg
• Pressure max. 60 MPa
• Pulling force: 155 kN / 45 MPaa
• Stroke: 46 mm
• Dimensions: 314 × 244 mm
