POP Standard Blindniete

POP® Standard Blindniete

Benefits of blind rivet installation

More and more users are recognising and applying the positive benefits of working with blind rivets: for example, in electrical, medical and mechanical engineering, household appliances, power engineering, the toy and furniture industries, or even in the automotive sector and equipment manufacturing. Unlike welded joints, which cause the material to warp, rivets can be quickly installed on one side and with little heat.

Even on hollow profiles and pipes, the joints are guaranteed to fit perfectly and maintain their dimensional accuracy. POP® blind rivets are especially suitable for thin-walled components and for effective installation from one side.

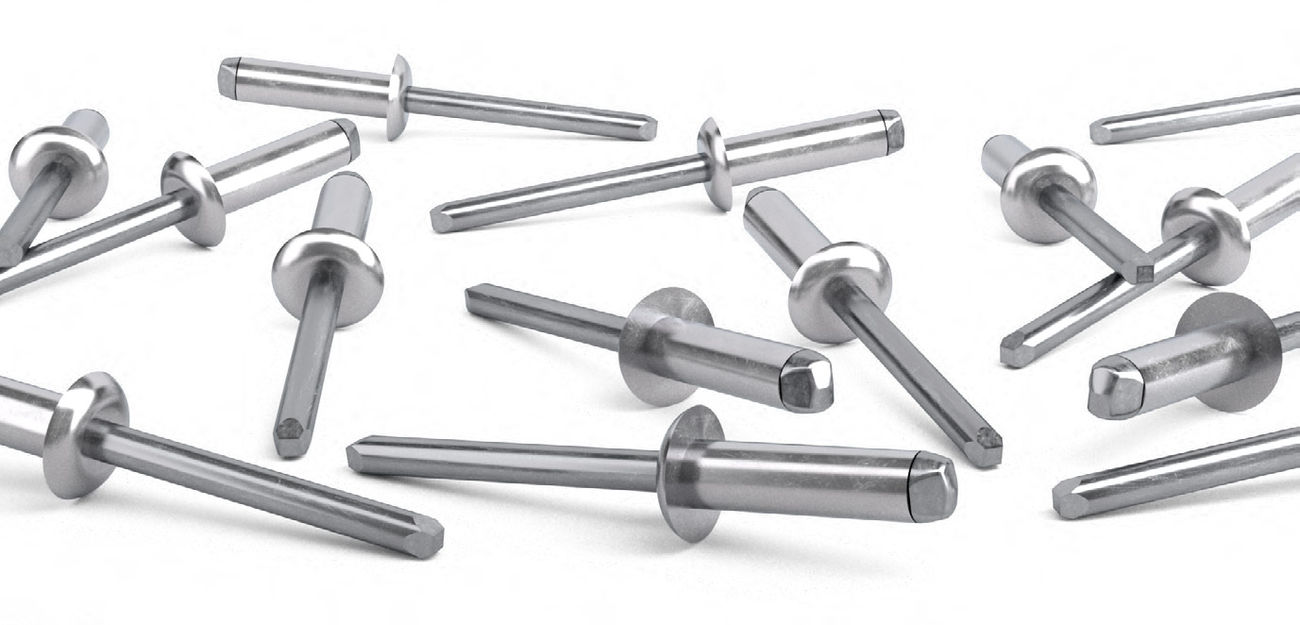

POP® standard rivets are the classic blind rivet solution. They are ideal for securely fastening multiple components, such as profiles, pipes and tanks, and much more besides. Standard blind rivets come in a wide selection of material combinations, head shapes and grip lengths. Low in cost, standard blind rivets are quickly installed and fasten tightly and securely. The stainless steel version is also very corrosion resistant.

TIFAS Blindniete Example 1
TIFAS Blindniete Example 2

Installation steps

  1. Place the blind rivet with mandrel into the installation tool and insert into the drilled hole.
  2. On triggering the installation tool, the jaws take hold of the mandrel and pull. At the same time, the mandrel head swages the end of the shank on the sleeve. The rivet is installed when the mandrel head is at the same height as the surface layer of the component.
  3. A surge of force is applied at this point, causing the mandrel to snap off when it reaches its set breaking point
POP Standard Blindniete Step 1
POP Standard Blindniete Step 2
POP Standard Blindniete Step 3

Coloured plastic caps

Plastic caps in an array of RAL colours can be supplied for the POP® blind rivet line. POP® blind rivets can also be supplied painted in the desired RAL colour.

General building control approval

Some dimensions are available with general building control approval No. Z-14.1-4.

Benefits at a glance

  • Universal use
  • Combines various materials such as metals and plastics
  • Available in a very wide range of designs (dimensions, material combinations or head shapes)
  • Quick and secure installation
  • Permanent secure fixing
  • Heatless installation means component will not warp.
  • Eliminates extensive refinishing
  • Ideal for lightweight constructions

Sample applications:

  • General industry
  • Automotive industry
  • Construction industry
  • Bodywork and vehicle manufacture



Download POP® Standard blind rivets PDF
