RIV-TI® Plus Blindnietmuttern

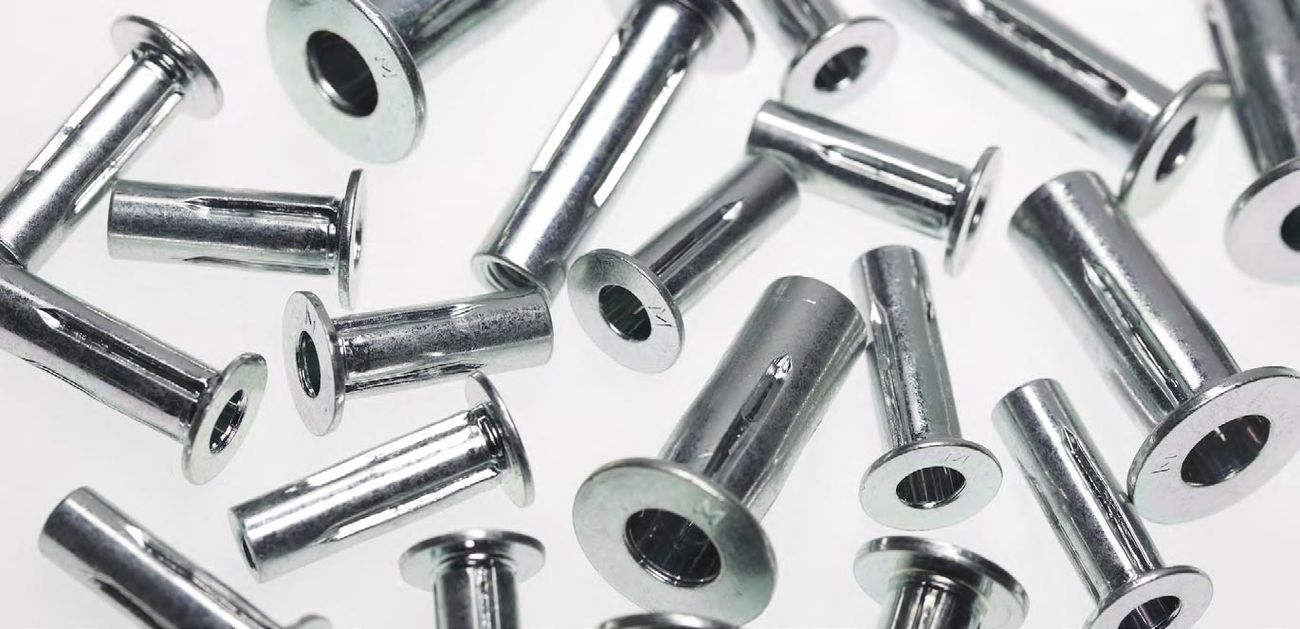

The multi-range blind rivet nut for high pull-out resistance

The RIV-TI® Plus blind rivet nut has been especially designed for use in softer materials, such as plastics and composites. The area prone to distortion has been engineered with longitudinal slots to reduce the cross-section, thus significantly lowering the forming force required compared to standard blind rivet nuts. With its especially wide grip range of up to 12.7 mm, this blind rivet nut can connect different components while guaranteeing high tensile strengths. The head expands into four legs on the blind side. The resulting extra-large surface on the blind side also helps to reinforce the rivets

RIV-TI Plus Blindnietmuttern Example 1
RIV-TI Plus Blindnietmuttern Example 3
RIV-TI Plus Blindnietmuttern Example 2

Easy, rational and time-saving installation

To ensure that RIV- TI® Plus blind rivet nuts are perfectly installed, we recommend using the TIOS® EN18 or ProSert® XTN20 rivet installation tools, with extended threaded mandrels in either case. (Further information available in the 10057 tool catalogue).

RIV-TI Plus Blindnietmuttern Step 1

1. Insert the RIV-TI® Plus blind rivet nut into the drilled hole.

RIV-TI Plus Blindnietmuttern Step 2

2. The rivet installation tool retracts the threaded mandrel and rivets the RIV-TI® Plus to the component. Always ensure that the installation tool is square to the component.

RIV-TI Plus Blindnietmuttern Step 3

3. Spin off the threaded mandrel to fasten the RIV-TI® Plus

RIV-TI Plus Blindnietmuttern Step 4

4. Once installed, the RIV-TI® Plus provides a highly durable internal thread for further fastening options.

Benefits at a glance

  • Extremely wide grip range (Multigrip) reduces the number of fasteners needed
  • Extra-large blind side footprint for very strong pull-out resistance
  • The low radial stress when installing the RIV-TI® Plus eliminates the risk of the component being exposed to high loads
  • Minimal risk of composite materials tearing or delaminating
  • Ideal for use on soft and brittle materials, such as plastics, composite materials, cardboard, etc.

Form of delivery

Head typedome head
ThreadsM5, M6, M8, M10
MaterialSAE 1008 steel
Finish5-8μm galvanized and passivated, Cr-6 free, RoHS-compliant



Applications:

  • Vehicle construction (use on sandwich profiles and composite panels)
  • Interior fittings in stores and offices
  • Advertising media, display boards
  • Container construction
  • Leisure appliances
  • Household appliances


Download RIV-TI® Plus blind rivet nuts PDF
