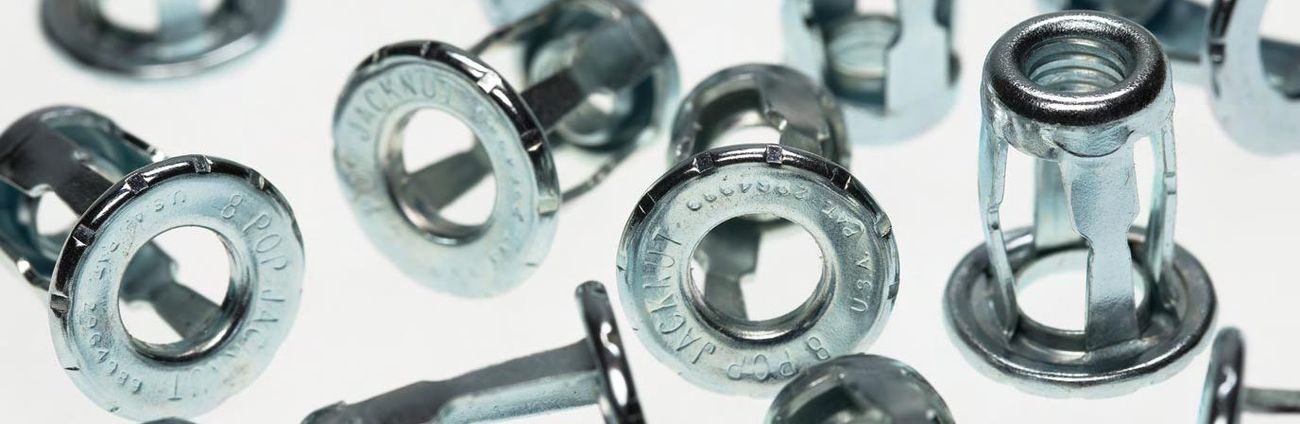

Jack Nut® Blind Rivet Nuts

Soft or brittle materials pose special challenges for fastening elements. Jack Nut® blind rivet nuts offer loadbearing threads for thin-walled and problematical materials. The distorted section expands into 4 legs on the blind side. Their ability to distribute the load across a large area on the blind side of the material radically improves the fastener’s push-out resistance. Suitable for use in plasterboard, plastic, hardboard, plywood, pressboard, etc.

In addition to our galvanised steel Jack Nut®, we are also able to manufacture blind rivet nuts using other combinations of material and with other finishes depending on your particular needs, including for the automotive industry. A Raintite® coating can be applied as an optional extra to guard against moisture. A perfect PVC coating guards against scratching and galvanic corrosion.

Easy, rational and time-saving installation

1. Insert Jack Nut® blind rivet nuts into the drilled hole

2. Upset the Jack Nut® blind rivet nut

3. The Jack Nut® blind rivet nut is fastened

4. Screw on the part to be attached

Benefits at a glance

  • Especially suited for soft, thin or brittle materials
  • Large blind side footprint
  • Wide grip range
  • Secure fit
  • High tensile strength
  • Quick and easy one-sided installation

Form of delivery

Threads:M4, M5, M6
Material:Steel (AISI 1008/1010)
Surface:3-5 μm galvanised and passivated, Cr -6 free, RoHS-compliant
